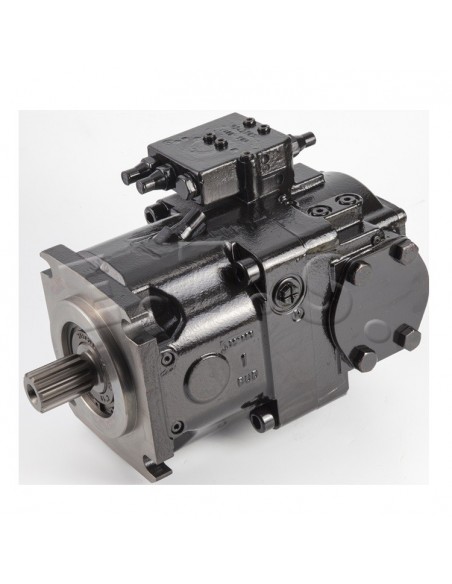

Hydraulic Pump 85 Cm³
RE563717
John Deere Tractor 8130, 8225R, 8230, 8245R, 8270R, 8295R, 8295RT, 8320R, 8320RT, 8330,8345R, 8345RT, 8430, 8530

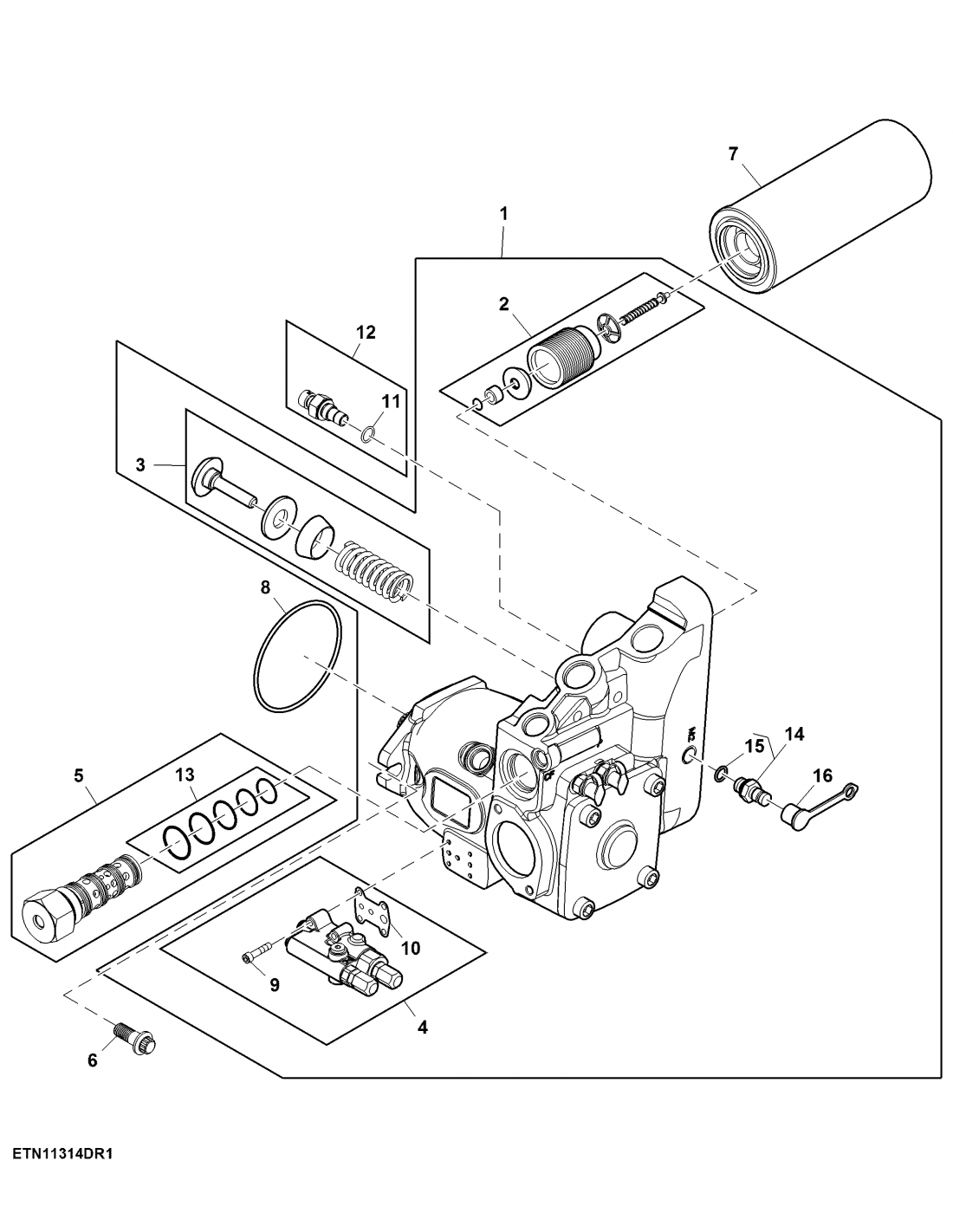

| KEY | PART NO. | PART NAME | QTY | Tractor Serial No. | REMARKS |
| 1 | RE563717 | Hydraulic Pump | 1 | SUB FOR RE289097; INCLUDES RE211014 | |
| 2 | RE211020 | Valve Kit | 1 | (ANTI-DRAIN VALVE) | |
| 3 | RE566661 | Valve Kit | 1 | (BYPASS VALVE) SUB FOR RE211019 | |
| 4 | RE211015 | Pump/Valve Controller | 1 | ||
| 5 | RE260748 | Control Valve | 1 | (PRIORITY VALVE) | |
| 6 | R230667 | Screw | 2 | M14 X 35 | |
| 7 | RE210857 | Oil Filter | 2 | ||
| 8 | T42302 | O-Ring | 1 | ||
| 9 | 19M10341 | Socket Head Screw | 4 | M6 X 30 | |
| 10 | F436313 | Seal | 1 | ||
| 11 | 51M7043 | O-Ring | 1 | 15.300 X 2.200 MM | |
| 12 | RE576665 | Sensor | 1 | SUB FOR RE213144 | |
| 13 | RE252945 | Seal Kit | 1 | ||
| 14 | RE190805 | Diagnostic Coupling | 4 | ||
| 15 | 51M7041 | O-Ring | 4 | 11.300 X 2.200 MM | |
| 16 | R77175 | Cover | 4 |
- Manufacturer
- John Deere
- Application
- Weight
RE563717
