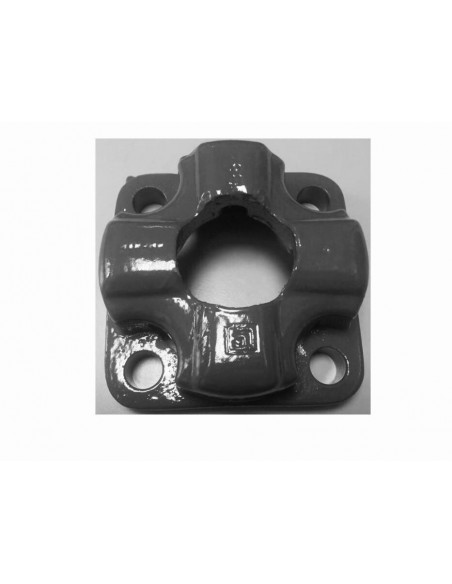

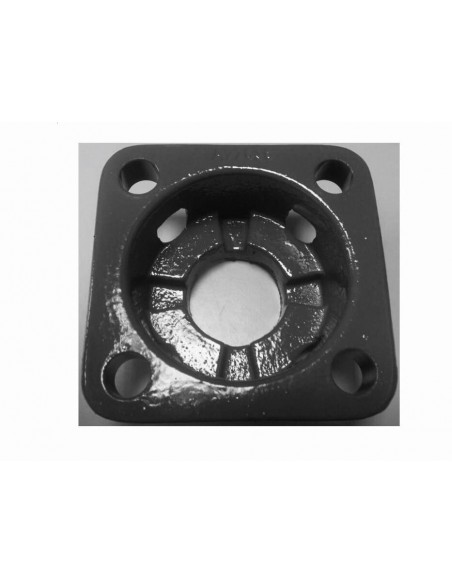

Flansa - Capac
Z12286
John Deere Combine 1065, 1068H, 1072, 1075, 1075HY/4, 1085, 1085HY/4, 1166, 1166HY/4, 1169, 1169HY/4, 1174, 1174HY/4, 1177, 1177Hy4, 1188, 1188HY/4, 4425, 4435,4435 Hydro

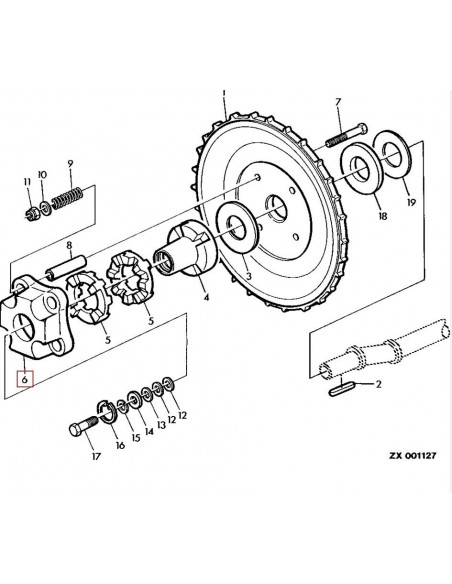

| KEY | PART NO. | PART NAME | QTY | SERIAL NO. | 4435 | 4435HY | REMARKS |
| 1 | Z12244 | Chain Sprocket | 1 | X | X | ||
| 2 | 49M4836 | Shaft Key | 1 | X | X | 8 X 7 X 45 MM | |
| 3 | H89524 | Washer | 1 | X | (SUB Z53298) | ||
| 3 | Z53298 | Washer | 1 | X | X | ||
| 4 | CQ13105 | Hub | 1 | X | (SUB Z12285) | ||
| 4 | Z12285 | Hub | 1 | X | X | ||
| 5 | Z699H | Slip Clutch | 2 | X | X | ||
| 6 | CQ00534 | Housing | 1 | X | (SUB Z12286) | ||
| 6 | Z12286 | Housing | 1 | X | X | ||
| 7 | 19M8049 | Cap Screw | 4 | X | X | M10 X 80 | |
| 8 | CQ13099 | Bushing | 1 | X | (SUB Z53297) | ||
| 8 | Z53297 | Bushing | 1 | X | X | (SUB Z57718) | |
| 8 | Z57718 | Bushing | 1 | X | X | ||
| 9 | S04790 | Spring | 4 | X | (SUB Z53296) | ||
| 9 | Z53296 | Spring | 4 | X | X | ||
| 10 | 24M7178 | Washer | 4 | X | X | 10.500 X 30 X 2.500 MM | |
| 11 | 14M7167 | Lock Nut | 4 | X | X | M10 | |
| 12 | 24M7028 | Washer | 3 | X | X | 10.500 X 20 X 2 MM | |
| 13 | 24M7140 | Washer | AR | X | X | 13 X 19 X 1 MM | |
| 14 | 24M7101 | Washer | 1 | X | X | 11 X 34 X 3 MM 35 X 1,5MM | |
| 15 | 12M7013 | Lock Washer | 1 | X | X | ||
| 16 | 40M1858 | Snap Ring | 1 | X | X | ||
| 17 | 19M7168 | Cap Screw | 1 | X | X | M10 X 30 | |
| 18 | 24M7202 | Washer | AR | ______-053960 | X | X | 31 X 56 X 4 MM |
| 19 | 24M7302 | Shim | AR | ______-053960 | X | X | 0.500 MM |
Z12286
